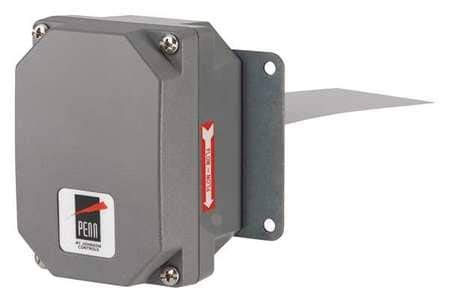

SPDT Air Flow Switch - High Precision HVAC Control for Industrial & Home Use | Perfect for Duct Systems, Ventilation & Air Quality Monitoring
$161.15
$293
-45% OFF
Free shipping on all orders over $50
7-15 days international
6 people viewing this product right now!
30-day free returns
Secure checkout
99733740
Guranteed safe checkout
Description
Air Flow Switch, Paddle Size 2-1/8 In. x 6-7/8 In., Full Load Amps @ 115/230V 16.0/8.0, Switch Type SPDT, Max. Air Velocity 2000 fpm, Min. Actuation Velocity Horizontal 500 fpm (greater than 50 sq. in. duct area), Min. Actuation Velocity Vertical 750 fpm (greater than 50 sq. in. duct area), Overall Height 4 In., Overall Width 2-3/4 In., Overall Depth 2-5/8 In., Max. Ambient Temp. 104 Degrees F, Mounting Location Top, Side, or Bottom of a Duct
Features
Overall Height: 4", Paddle Size: 2-1/8" x 6-7/8", Application: Make-up Air, Exhaust Air Systems and Air Flow Sensing
