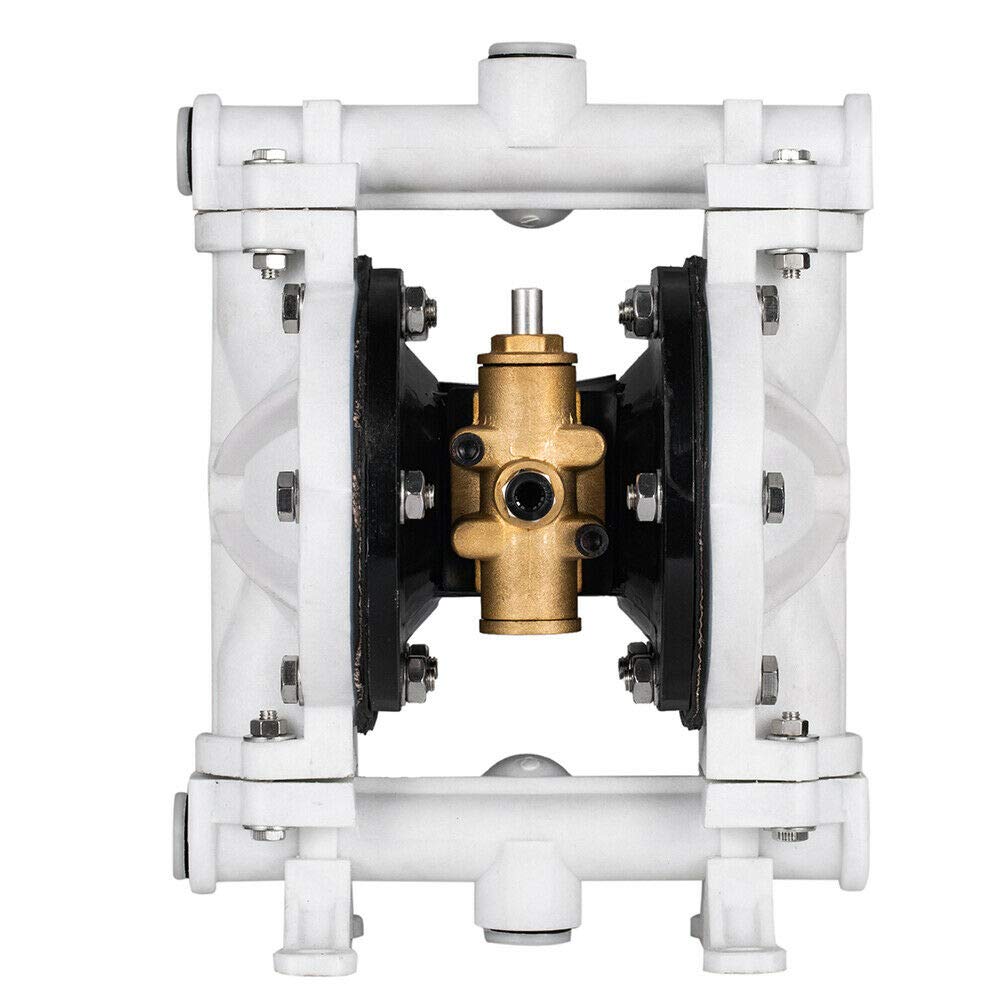

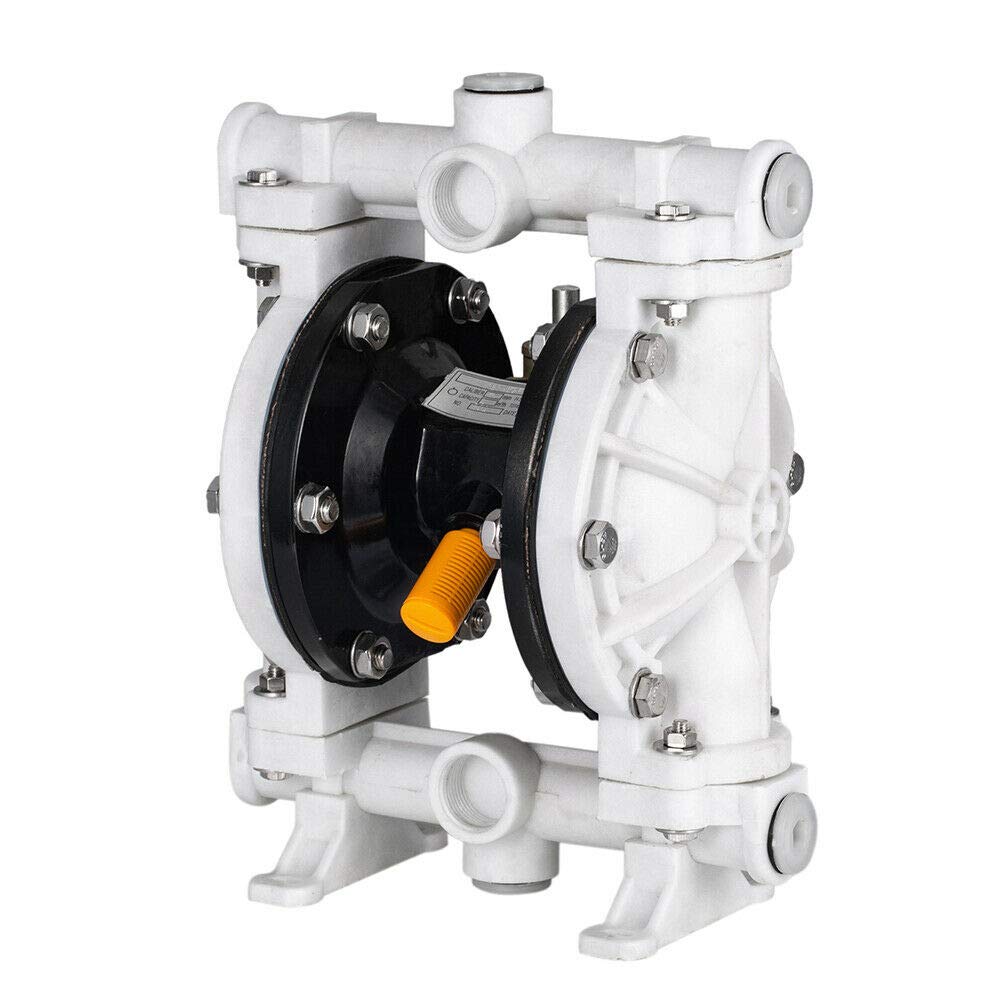

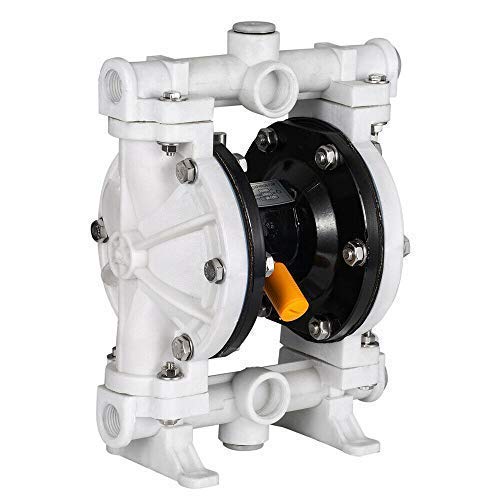

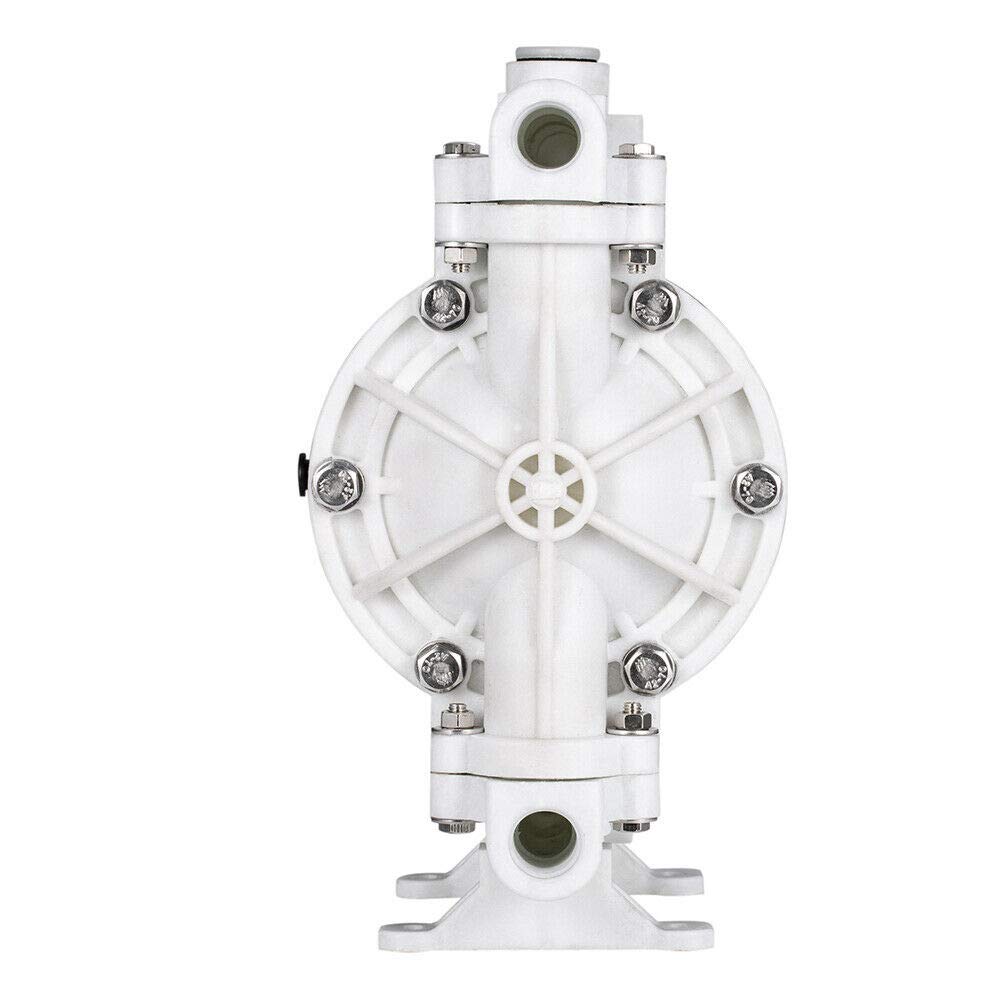

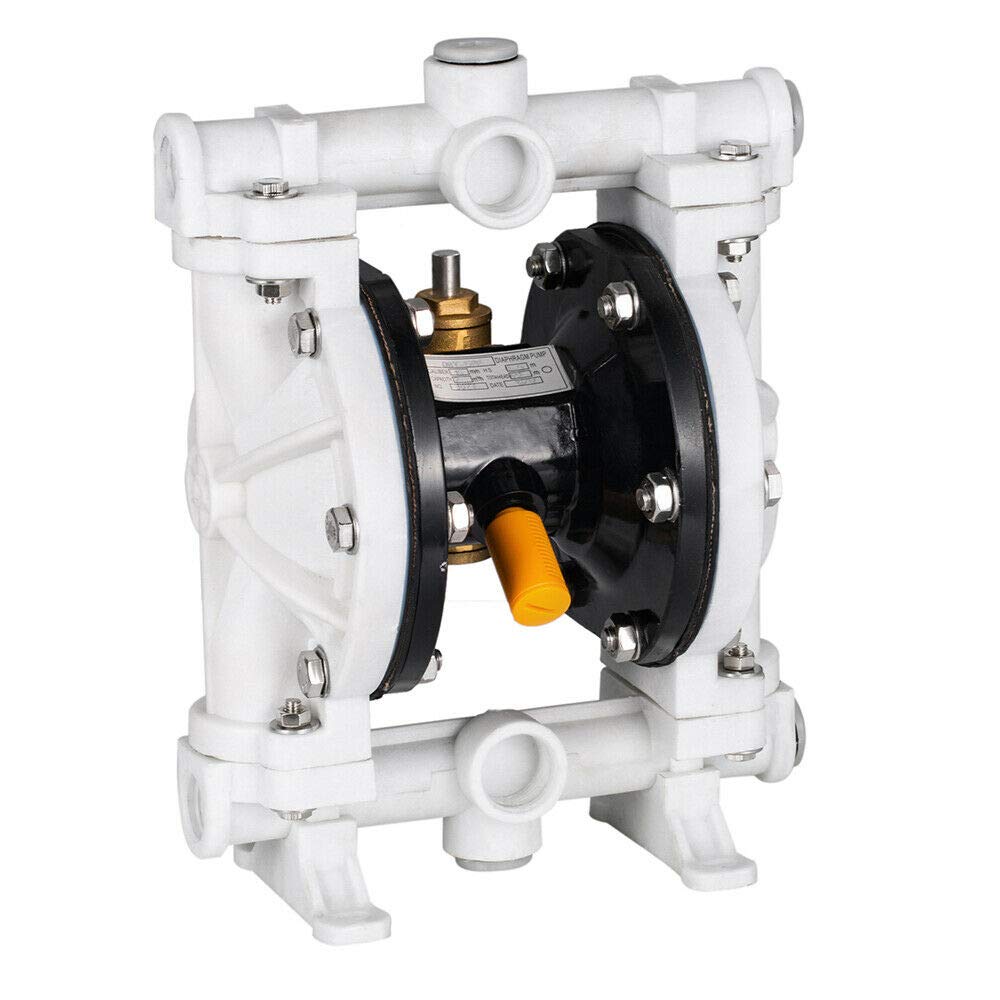

12 GPM Air-Operated Double Diaphragm Pump - 115 PSI, 1/2" Inlet/Outlet - Ideal for Petroleum Fluids Transfer in Industrial, Chemical & Marine Applications
Free shipping on all orders over $50
7-15 days international
20 people viewing this product right now!
30-day free returns
Secure checkout
47861947
Description
[MAIN PARAMETER]~Material:Polypropylene ; Type: Double diaphragm ; Operation Type: Air-operated ; Inlet/Outlet Port Size/Standard 1/2 inch (12.7 mm) ; Air Inlet Size: 1/4 inch(6.35 mm) ; Max Flow Rate: 13 GPM [Quality Performance]~Maximum Head: 226.4FT/69M, Max Pressure: 100PSI. Max Temp : 150 ℉. Top quality glyd ring, a double-acting seal that delivers better performance. 1/4 inch air inlet with NPT fitting uses standard shop air for easy operation. [EXCELLENT CONSTRUCTION]~Rugged construction - resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling. Easy access to ball checks and fluid caps for maintenance and repairs. [UNIQUE DESIGN]~Features an externally serviceable air distribution system and all-bolted construction. Modular air valve is stall-free, this low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes down time. [VERSATILE USE]~The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc. › See more product details
Features
[MAIN PARAMETER]~MaterialPolypropylene ; Type Double diaphragm ; Operation Type Air-operated ; Inlet/Outlet Port Size/Standard 1/2 inch (12.7 mm) ; Air Inlet Size 1/4 inch(6.35 mm) ; Max Flow Rate 13 GPM
[Quality Performance]~Maximum Head 226.4FT/69M, Max Pressure 100PSI. Max Temp 150 ℉. Top quality glyd ring, a double-acting seal that delivers better performance. 1/4 inch air inlet with NPT fitting uses standard shop air for easy operation.
[EXCELLENT CONSTRUCTION]~Rugged construction - resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling. Easy access to ball checks and fluid caps for maintenance and repairs.
[UNIQUE DESIGN]~Features an externally serviceable air distribution system and all-bolted construction. Modular air valve is stall-free, this low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes down time.
[VERSATILE USE]~The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc.
